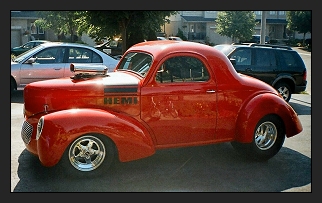

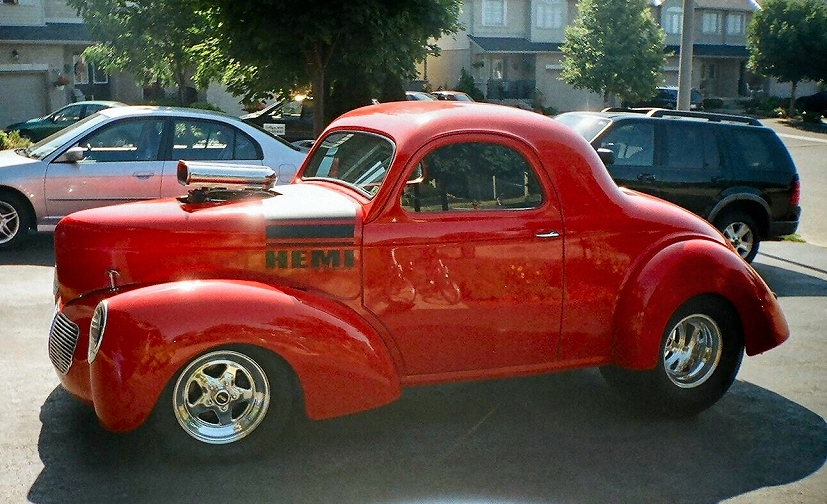

40-41 WILLYS BODY & FRAME
|
|
|
|
Doors, front fenders, rear fenders, firewall, dash, trunk, floor and grille section. All splash aprons and garnish moldings are included. The body is hand laid fiberglass with the trunk hinged, the doors are hinged and latched with bear claw rotary safety latches. All of the interior wood is installed, my kit also includes the following accessories, the (40 or 41) Grill, Headlight rings & lenses, Headlight buckets, Taillights, Hoodhinge, Window glass and Door handles.
The Chassis includes a Pro-Street frame that is narrowed to except a 5 link rear suspension and tubbed body, 102'' wheel base that is reproduced from the original design and mig and tig welded for superior strength and durability, motor mounts are matched to your motor style and type. The rolling chassis includes a disc brake kit ,11" rotors, front and rear, spindles,calipers & pads, adapters, mustang II rack, aldan front and rear coilovers, fully adjustable triangulated 4 link, upper & lower A-Arms (stamped), 7" booster & master cylinder, brake pedal assembly, strut rods, hardlines & clips, proportioning and residual valves, Ford 9" shortened to 44" (flange to flange)to accept a 41/2 backspace for a 31-18.5-15 inch tire ,axles included (no center section), body to frame welting and salvage yard tires.
This kit is almost complete and is an excellent start to completing your dream car, all the hard work is started for you, and there are also custom options available for that personal touch, such as a Franklin rear end, tubular A-Arms, drilled disc's, chromed and polished accessories, and a straight front axle (pricing upon request)
|
|

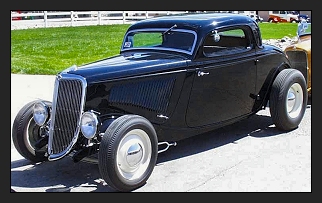

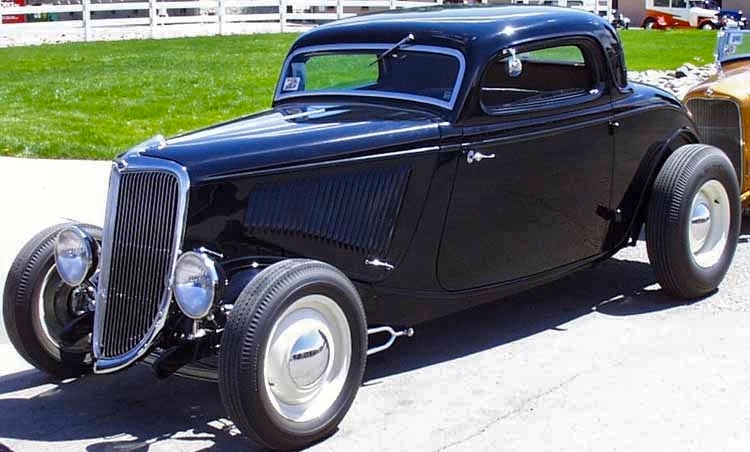

34 FORD HIGHBOY BODY & FRAME
|
The doors are hinged and latched with bear claw rotary safety latches, floor, tunnel cover, dash board, wiper motor cover, rear garnish mouldings and firewall. All of the interior wood is installed, my kit also includes the following accessories ,the Grill with SS teeth, original headlights, headlight stands and taillights, fiberglass 3 piece hood,window glass and door handles.
The Chassis includes a 112" wheel base that is reproduced from the original design and mig and tig welded for superior strength and durability, motor mounts are matched to your motor style and type.The rolling chassis includes a disc brake kit ,11" rotors, front and rear, spindles,calipers & pads, adapters, mustang II rack, aldan front and rear coilovers, upper & lower A-Arms (stamped), 7" booster & master cylinder, brake pedal assembly, strut rods, hardlines & clips, proportioning and residual valves, Ford 9" with axles included (no center section), body to frame welting and salvage yard tires.
This kit is almost complete and is an excellent start to completing your dream car, all the hard work is started for you, and there are also custom options available for that personal touch, such as a Franklin rear end, tubular A-Arms, drilled disc's, chromed and polished accessories, and a straight front axle (pricing upon request).
|

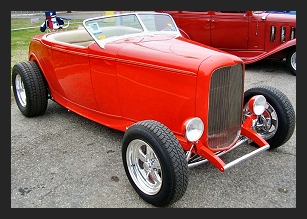

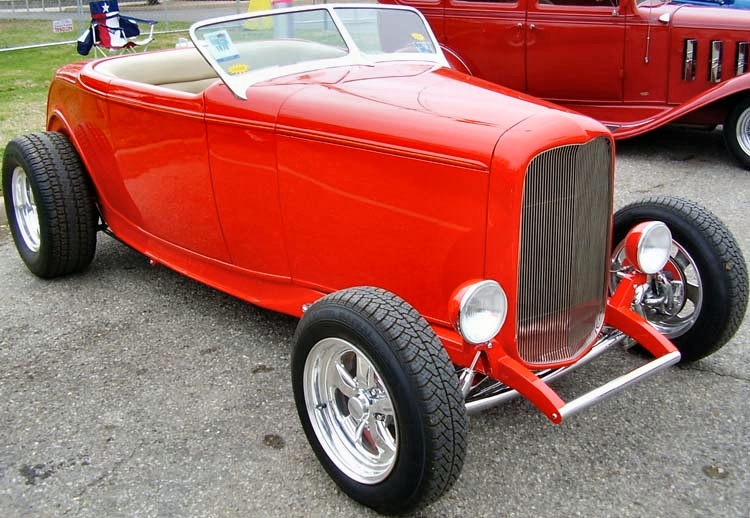

32 FORD ROADSTER
Including main body, doors hung and latched, trunk lid hung, floor, dash board, and firewall. Door frames and dash are supported with hardwood and plywood inner structure for stability and solid mounting of hinges and latches. Interior tubular steel structure is added for additional strength and personal protection. Trunk hinge pivots are steel reinforced, precisely located and fiberglassed in place. Doors and trunk lid come hinged to the body using taped sandwich plates behind inner liners for strength and adjustability. Doors are latched with bear claw rotary safety latches. Frame rails are reproduced from original design and mig and tig welded for superior strength and durability, 106” wheel base, main rails fabricated from 10 gauge cold finished mild steel, cross section of main rail at its tallest point is 6” x 1 7/8”.
This kit is almost complete and is an excellent start to completing your dream car, all the hard work is started for you, and there are also custom options available for that personal touch, such as a Franklin rear end, tubular A-Arms, drilled disc's, chromed and polished accessories,(pricing upon request).
|
|
|
|
|
|
